The inside of the boat is bare foam, but will get glass soon.
Monday, December 27, 2010
Hull Turning
On Monday, December 6th 2010 the hull was flipped. We put it on the back of a trailer, and moved it to the boat shop (my friend Beau was kind enough to allow me to build the boat from here on out in his shop instead of in the garage--what a huge help). Things will go quicker from here on out.
Thursday, December 23, 2010
Center Console
I also decided that this boat would have a center cosole and leaning post. I made the center console the same way I made the boat. I built a plug and covered it in foam, but I didn't glass it until I took it off the plug. The console didn't come off the plug as easily as the boat did though. I had to take the plug apart from the inside out.
Below is the wooden plug.
Below is the wooden plug.
I left off the panel under the dash that forms the toe kick hoping that would allow the foam to pop off the plug easily. No such luck though. It took me 3 hours at least to get this console off the plug.
I pulled fillets along the hard corners on the inside and then glassed the inside as well.
Grinding Glass...
The better portion my free time during the months of September and October of 2010 was spent grinding fiberglass. I burned the motor out of one mini-grinder, and moved on to the next one. I can't count how many times I covered the entire garage with fiberglass dust, sucked it all up with the shop vac, and then covered it right back up again.
As I alluded to in an earlier post, the strakes caused a significant amount of extra labor. I didn't pull fillets along the sides before the glass was laid, which was the problem. There ended up being little voids all along the edges of the strakes. I couldn't see all the voids through the glass, so instead of taking any chances I opted to just grind all four strakes back down to the substrate. This took around 35 hours to complete. Once it was all ground down, I used a lighter fiberglass to reglass it. There were also some voids along the chines, so I ground back both sides for the first four or so feet, and then reglassed this part as well.
As I alluded to in an earlier post, the strakes caused a significant amount of extra labor. I didn't pull fillets along the sides before the glass was laid, which was the problem. There ended up being little voids all along the edges of the strakes. I couldn't see all the voids through the glass, so instead of taking any chances I opted to just grind all four strakes back down to the substrate. This took around 35 hours to complete. Once it was all ground down, I used a lighter fiberglass to reglass it. There were also some voids along the chines, so I ground back both sides for the first four or so feet, and then reglassed this part as well.
On With the Boat
So, the plug was complete, and it was time to start building with the material that would actually go into the boat. I chose to use Divinycell because it is way lighter than wood (very inportant since I will be manually pushing this boat around on the flats with a push pole). Secondly, the foam is closed cell, so, in the event that there is ever any water intrusion, the foam won't rot. It is great to work with because it is light, sands easy, and cuts easy.
The downside to using a composite substrate is that it is really, really expensive.
As a student of my father, I am always on the lookout for a deal. Amazingly, I got a killer deal on some Divinycell. I met a builder in town who needed some cash. He had a bunch of Divinycell at his shop, and I bought a whole pile of it for cheap. Four sheets were 8x4 footers and they were 3/4 inch H100 density, which would be perfect for my deck, and I got another 15 6x4 sheets of H110, which would be good for the transom and bulkheads. I didn't need 15 sheets but bought them anyway. I sold 8 of the H110s for twice what I paid for them. I had to buy another 9 sheets at retail for the hull, console, and other misc parts, but I essentially got the foam core for the deck, transom and stringers for free. It only took me two weeks to get the 8 sheets sold.
Alright, so now I got the divinycell. I cut the divinycell into the same shapes that I cut the 1/4 inch plywood that I skinned the plug with. I used little 4x4 inch blocks of wood and a brad nailer to hold the foam up against the plug. I drove maybe 10-12 of the little blocks per foam sheet. I packed epoxy/cabosil mix between the seams and let it cure. Once cured the foam pieces were all one piece in the shape of the boat hull. The tunnel was difficult because the curve of it needed to be uniform. I used a 2 by 2 inch piece of wood lined up with the keel and screwed it to the substrate. This worked to keep it pretty even.
Once the epoxy/cab cured the boat was all one piece. I used the rear end of a hammer to pull out all the blocks (there were little pices of duct tape on the back sides of all of these things, to keep them from sticking to the foam if I got any epoxy on them). Invariably, at least one of the brad nails would stay stuck in the boat, and would need to be pulled out with needle nose pliers. The seams were all rough from where the edges overlapped or a gob of epoxy spilled out. I used the hand sander to flush everything out.
Lots of blocks to be pulled out.
Next came carbon fiber. All seams were reinforced with carbon fiber for structural integrity/insurance. I also cut some strakes out of the scrap foam. These looked really cool on the bare foam, but they ended up causing a huge amount of additional work (which I will explain later).
The downside to using a composite substrate is that it is really, really expensive.
As a student of my father, I am always on the lookout for a deal. Amazingly, I got a killer deal on some Divinycell. I met a builder in town who needed some cash. He had a bunch of Divinycell at his shop, and I bought a whole pile of it for cheap. Four sheets were 8x4 footers and they were 3/4 inch H100 density, which would be perfect for my deck, and I got another 15 6x4 sheets of H110, which would be good for the transom and bulkheads. I didn't need 15 sheets but bought them anyway. I sold 8 of the H110s for twice what I paid for them. I had to buy another 9 sheets at retail for the hull, console, and other misc parts, but I essentially got the foam core for the deck, transom and stringers for free. It only took me two weeks to get the 8 sheets sold.
Alright, so now I got the divinycell. I cut the divinycell into the same shapes that I cut the 1/4 inch plywood that I skinned the plug with. I used little 4x4 inch blocks of wood and a brad nailer to hold the foam up against the plug. I drove maybe 10-12 of the little blocks per foam sheet. I packed epoxy/cabosil mix between the seams and let it cure. Once cured the foam pieces were all one piece in the shape of the boat hull. The tunnel was difficult because the curve of it needed to be uniform. I used a 2 by 2 inch piece of wood lined up with the keel and screwed it to the substrate. This worked to keep it pretty even.
Once the epoxy/cab cured the boat was all one piece. I used the rear end of a hammer to pull out all the blocks (there were little pices of duct tape on the back sides of all of these things, to keep them from sticking to the foam if I got any epoxy on them). Invariably, at least one of the brad nails would stay stuck in the boat, and would need to be pulled out with needle nose pliers. The seams were all rough from where the edges overlapped or a gob of epoxy spilled out. I used the hand sander to flush everything out.
Next came carbon fiber. All seams were reinforced with carbon fiber for structural integrity/insurance. I also cut some strakes out of the scrap foam. These looked really cool on the bare foam, but they ended up causing a huge amount of additional work (which I will explain later).
I used peel ply on the carbon fiber so I wouldn't have so much sanding work to do after the cure. After the surface was prepped I dry fit the fiberglass. With the help of Beau (who used to work for Paul Mann at the Outer Banks) and another friend of mine, Thomas Tayloe (who used to work for Shearline in Beaufort, I laid two layers of glass. No way I could have done this correctly without their help.
The Decision to Build
It was October 2009 when I first decided I wanted to build my own boat, I was really lucky in that a friend of mine, who is a boat builder by trade, was in the process of building a boat in a garage right down the road from my office. I was able to go by the shop a couple days a week to monitor the build process. Luckily, my friend Beau was not annoyed to have someone there saying, "And why'd you do this? Why'd you do that? How'd you do this?"
I decided I would go for it. Another builder friend of mine, Chris Elkins from Chapel Hill, NC, sent me some plans for a stitch and glue boat. That was really nice of him, but I just couldn't get the inspiration for that boat. The reason I was building a boat, after all, was to create a boat that had the traits that I wanted in a boat. Making a boat that someone else designed didn't work for me.
The boat I had at the time of beginning my build was a 17-foot tunnel hull Pathfinder made by Maverick Boats. This boat was a great boat, and perfect for introducing myself to skinny water red drum fishing. The upside of this boat was how skinny it was. It was light, and poled easily. The downside was that because it was so flat, it really pounded in a chop. On an average day in the Cape Fear area we will have 12mph winds at least by 10am. Even with the trim tabs working to help cut the chop, it still really beat you.
I wanted a boat that was a little bit more beamy, that was still flat bottomed and skinny in draft, but slightly more agressive at the bow. I wanted to be able to mash those trim tabs down and have something there to dig into and split that chop a little bit.
I used measurements from the pathfinder and from Chris' plans to use as a reference, and made up new measurements of my own boat. I cut out miniature stations from cardboard and glued them down to another flat cardboard sheet, laying them out so that I could see what the boat profile would look like. I was content so I started with wood, translating those same measurements to a larger size.
The boat was to be built with closed cell foam core called Divinycell. So, the first step was to build the plug. Since this plug was just for shape, I just used regular plywood from Lowe's. The first go was pretty terrible. I had the stations set out on the floor of the garage, and the design left much to be desired. The hull sides were almost straight up and down, and there was almost no V to the hull at the bow.
So, I took it apart, re-cut all stations forward of station 3, and then put it back together. I tried to make the v on the front a little more defined. It was about January 2010 at this point.
Still wasn't happy with it. It just didn't sit right. Because of the fact that I had built this thing on the floor, there was nothing to hold the stations in place. When I had to flex wood onto the stations, like with the hull sides toward the bow, the pressure from the flex of the wood would move the station slightly, raising it or pulling it to the side. Obviously, this made the boat not completely plumb. About three months of build time had gone by at this point. I only worked on it a couple nights a week, but I would put in about 10-20 hours of build time on the weekends. I had even built in a prop pocket (which was admittedly pretty janky). I showed pictures to my friends Chris in Chapel Hill and Harry (a builder in Florida who had given me some advice earlier on). Both said they expected the prop pocket would give me cavitation troubles. Here it is:
I am pretty glad I asked for their input because it was the motivation I needed to take it all apart (again) and start over. This time I really did start almost all over. I got a bunch of sheets of plywood to cut new stations with. I also built a table that would get the boat up off the ground (building a boat on the floor is miserable on your back--don't do it), and would give me something to screw the stations to in order to keep them in place. I was able to reuse some of the stations that were in the back of the boat, and cut from them the new stations at the front. I cut all new stations. I really was starting again.
However, the first plug wasn't a total loss. There is a lot of thinking you have to do initially to try to determine how things will fit together, the heights of different stations, and the curvature of the different parts of the boat. I didn't have to do as much thinking this time. I just cut stations. One thing that was time consuming though was getting the stations fair. I used a batton, drilling half of the batton to the tip edges of the back three stations, and then flexing it into place. Then I measured from the building table up to the batton. This gave me a close measurement of how tall the station needed to be. Once I got the station cut, I used the batton again to measure the stations together. Almost always it would be off a little bit, at which point I used the power planer to shave a little off the top until the new station was in line with the others.
I also put rails on along the chines, hull sides and top edge of the hull side so that the plywood would lay more straight when I skinned the plug. The rails kept popping off with the pressure of the wood flexing at the bow so I had to reinforce them a bunch of times with little blocks of wood drilled into the station.
Also, per the advice of Harry Spear of Spear Boatworks in Florida, I put a second set of chines in at the waterline, which made the bottom of the hull curve instead of being a straight line. This will hopefully cut down on hull slap when the boat is at rest, or when poling the boat.

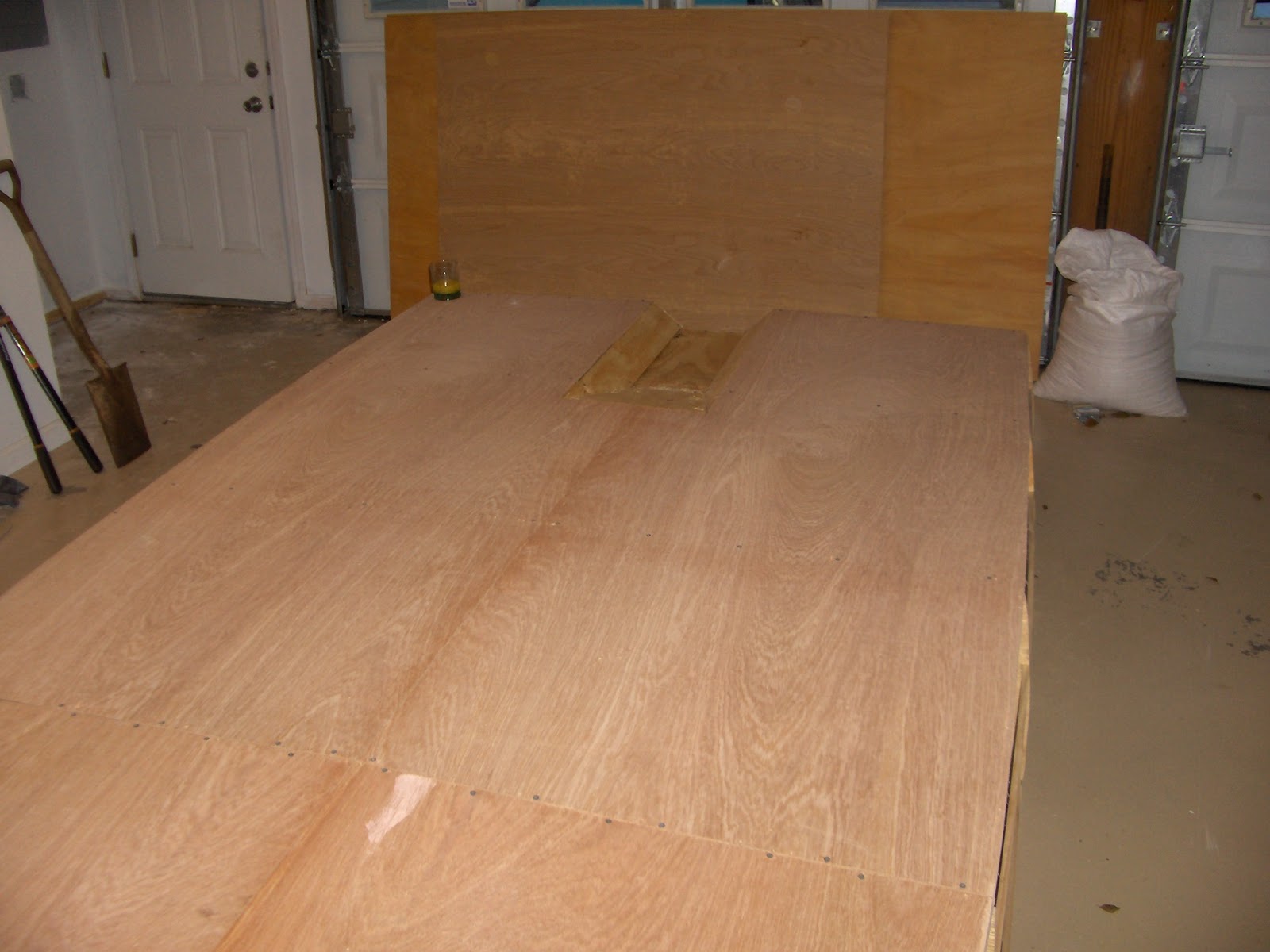

I was also having troubles with the plywood sagging a bit between stations on the aft half of the boat, so I used the table saw to plane out a few sections of wood, and I kind of made a grid between the stations with them. This made the plywood sit right, and surely saved me many hours of fairing time later in the build.

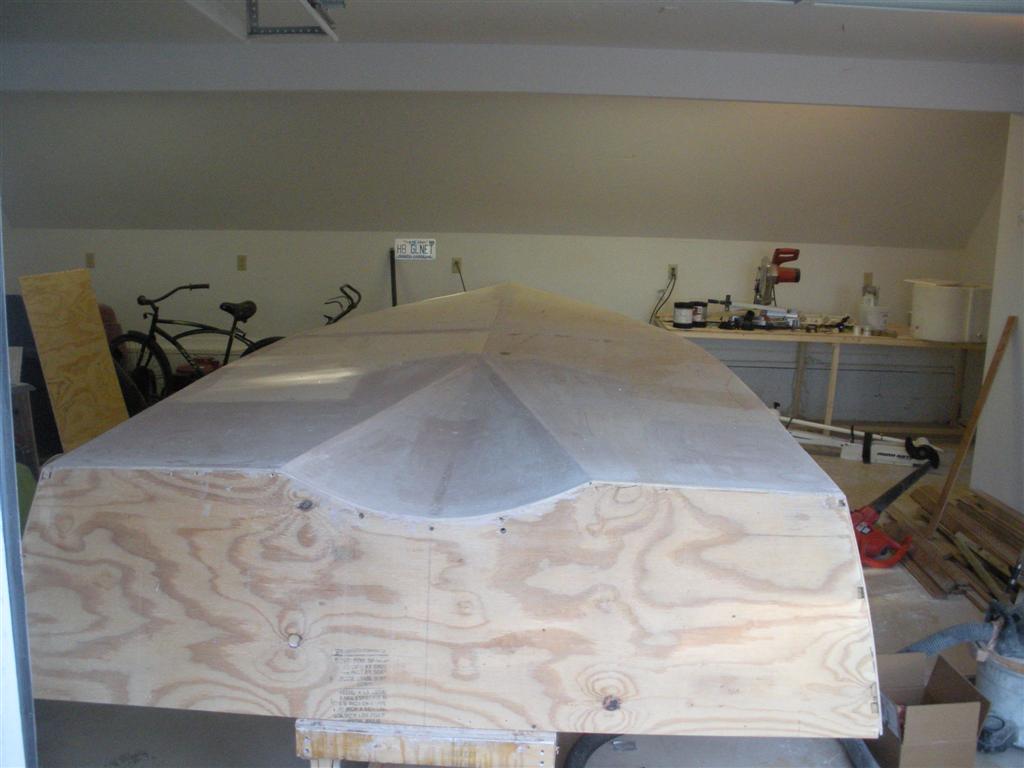

Once skinned, the second chine really gave it a cool, unique look and shape.The voids, like the one on the keel below, were filled in with bondo to make the surface fair before laying the foam.
Then it was time to build the prop pocket. I had some anxiety about this step, since I had read so many things online about how prop pockets have given people trouble. At this point my boat hasn't hit the water so I hope it will perform fine, but I used the same design as my builder friend Beau Johnson. It worked out great on his boat, so I am hoping to get the same results. Building the prop pocket was quite arduous. Cutting a concave fixture into a convex surface ain't easy. It took reinforcing members drilled in place between the stations to get the plywood to lay right--smoothly flexing instead of waving between stations.
I finally finished the plug, but then it still needed to be faired. It was April 2010 at this point. There were some low spots on the plug that would translate through to the foam core, so I used bondo, laying it over the wood, waiting until it cured, hand sanding, reapplying, waiting, hand sanding, etc. It took 4 gallons of bondo to get it fair. I used over a gallon on the prop pocket alone. This seemed to take forever, and was pretty grueling.
Add bondo....Let it cure...
Add more, let it cure, and then sand it down again...
I decided I would go for it. Another builder friend of mine, Chris Elkins from Chapel Hill, NC, sent me some plans for a stitch and glue boat. That was really nice of him, but I just couldn't get the inspiration for that boat. The reason I was building a boat, after all, was to create a boat that had the traits that I wanted in a boat. Making a boat that someone else designed didn't work for me.
The boat I had at the time of beginning my build was a 17-foot tunnel hull Pathfinder made by Maverick Boats. This boat was a great boat, and perfect for introducing myself to skinny water red drum fishing. The upside of this boat was how skinny it was. It was light, and poled easily. The downside was that because it was so flat, it really pounded in a chop. On an average day in the Cape Fear area we will have 12mph winds at least by 10am. Even with the trim tabs working to help cut the chop, it still really beat you.
I wanted a boat that was a little bit more beamy, that was still flat bottomed and skinny in draft, but slightly more agressive at the bow. I wanted to be able to mash those trim tabs down and have something there to dig into and split that chop a little bit.
I used measurements from the pathfinder and from Chris' plans to use as a reference, and made up new measurements of my own boat. I cut out miniature stations from cardboard and glued them down to another flat cardboard sheet, laying them out so that I could see what the boat profile would look like. I was content so I started with wood, translating those same measurements to a larger size.
The boat was to be built with closed cell foam core called Divinycell. So, the first step was to build the plug. Since this plug was just for shape, I just used regular plywood from Lowe's. The first go was pretty terrible. I had the stations set out on the floor of the garage, and the design left much to be desired. The hull sides were almost straight up and down, and there was almost no V to the hull at the bow.
So, I took it apart, re-cut all stations forward of station 3, and then put it back together. I tried to make the v on the front a little more defined. It was about January 2010 at this point.
However, the first plug wasn't a total loss. There is a lot of thinking you have to do initially to try to determine how things will fit together, the heights of different stations, and the curvature of the different parts of the boat. I didn't have to do as much thinking this time. I just cut stations. One thing that was time consuming though was getting the stations fair. I used a batton, drilling half of the batton to the tip edges of the back three stations, and then flexing it into place. Then I measured from the building table up to the batton. This gave me a close measurement of how tall the station needed to be. Once I got the station cut, I used the batton again to measure the stations together. Almost always it would be off a little bit, at which point I used the power planer to shave a little off the top until the new station was in line with the others.
These are a couple pretty neat looking pictures I think.
I was also having troubles with the plywood sagging a bit between stations on the aft half of the boat, so I used the table saw to plane out a few sections of wood, and I kind of made a grid between the stations with them. This made the plywood sit right, and surely saved me many hours of fairing time later in the build.
Once skinned, the second chine really gave it a cool, unique look and shape.The voids, like the one on the keel below, were filled in with bondo to make the surface fair before laying the foam.
Here's Beau (of Johnson Custom Boats in Wilmington, NC) grinding the hard edges out of the plug.
Then it was time to build the prop pocket. I had some anxiety about this step, since I had read so many things online about how prop pockets have given people trouble. At this point my boat hasn't hit the water so I hope it will perform fine, but I used the same design as my builder friend Beau Johnson. It worked out great on his boat, so I am hoping to get the same results. Building the prop pocket was quite arduous. Cutting a concave fixture into a convex surface ain't easy. It took reinforcing members drilled in place between the stations to get the plywood to lay right--smoothly flexing instead of waving between stations.
Add bondo....Let it cure...
Sand it down....
And again...
And again...
Until the whole boat is smooth.
So the plug was finally really complete now that it was fair. I had a nice-looking, fair surface on which to build the boat, and had a design all my own that will hopefully perform the way I want it to on the flats and while riding. The next step was to attach the foam substrate over top of it. With the help of my wonderful wife (you have to have a pretty darn tolerant and supportive wife in order to build a boat) I covered the boat in plastic (the seams of the foam have to be epoxied together, and the plastic prevents the foam from sticking to the plug. It was June 2010 by the time I got it all covered in plastic. It took an extra month because I found a spot at Ocean Isle Beach at the end of April where the redfish were absolutely crushing shrimp on low tide. That was a good time. On the best day that I had my friend Kyle Hines came along with me, and we caught somewhere around 20 fish in about an hour and a half. I took my dad and his friend out there, but we only caught a couple fish. In the first 45 minutes of that trip my dad's friend had fallen off the dock at the ramp into the water, and my dad busted his knuckles open on an oyster cluster while trying to set the anchor--so I think that trip was just doomed from the start.
Here's my wife Kendell helping me wrap the boat in plastic. It was a lot like wrapping presents - in that I was terrible at it.
